The Prospero challenge

Matt Keeter posted his Prospero challenge in March, and for a couple of months I did an excellent job of focusing on my other free-time projects and resisting the urge to jump in. That ended last week.

For a proper description of the problem, see the original post. But the basic idea is that we have a giant list of almost 8000 instructions:

_0 const 2.95
_1 var-x
_2 const 8.13008
_3 mul _1 _2
_4 add _0 _3
... and 7861 more

and we want to execute them as fast as possible, many times in parallel. There are already a bunch of great write-ups linked from the main Prospero challenge page, and most of them fall into two categories: interpreters, programs that iterate over the instructions to compute the result, and JIT compilers, programs that iterate over the instructions and emit machine code, which then gets executed to produce the result. One interesting solution emitted CUDA source code instead of machine code. Then it compiled the CUDA source and executed it on a GPU. The execution time was super fast, but the compilation step was very slow.

This post is about a sort of a JIT compiler, but one that outputs code for the GPU instead.¹ The first challenge is to figure out what kind of code to output. Most CPUs have a standardized instruction set (either ARM or x86_64 for most desktop CPUs), but GPUs don't: every GPU generation from every manufacturer does its own thing. Nvidia has PTX, an instruction set that's portable among their own GPUs, but I don't have an Nvidia GPU.

On non-Nvidia GPUs, SPIR-V appears to be the most useful compilation target. It's the intermediate representation used by Vulkan, and so any Vulkan video driver knows how to compile SPIR-V into the GPU's native instruction set. Hopefully those compilers are fast! ²

Emitting SPIR-V

I was relieved to discover that there's a crate (rspirv) for emitting binary SPIR-V code in Rust. They even have a builder with a convenient interface for building SPIR-V modules! Well, sort of convenient: SPIR-V is quite low-level and explicit, and it demands that you bind variables to everything that you want to refer to. For example, you can't just say that you want to declare a void function returning void. Instead, you have to first bind the void type to a variable, then bind the void-function-returning-void type to a variable, and then finally you can declare your function. In rspirv it looks like this:

let mut b = rpsirv::dr::Builder::new();
let void = b.type_void();                      // declare the void type
let voidf = b.type_function(void, vec![void]); // declare the void -> void type
let f = b.begin_function(void, None, FunctionControl::None, voidf);

If you want to add 1.0 to a floating point number, first you need to declare the floating point type, then the floating point constant 1.0, and only then can you create the addition instruction:

let float = b.type_float(32);
let float_1 = b.constant_bit32(float, bytemuck::cast(1.0f32));
let result = b.f_add(float, None, float_1, x).unwrap();

To make things more fun, void, voidf, f, float, and float_1 are represented in Rust by the same type, so there's nothing to prevent you from accidentally trying to add some thing to the float type instead of the floating-point constant 1.0. If you mess something up then the Vulkan runtime will helpfully segfault without telling you where the problem is.

To actually get things working, I made heavy usage of the spirv-val tool to debug problems with my generated code. To figure out how to express things in SPIR-V, I also looked at a bunch of generated disassembly from the reference glslang compiler, without which I never would have figured out how to access the built-in gl_GlobalInvocationId variables or how to write to the output buffer.

Once I'd figured out the basics, translating instructions to SPIR-V was pretty straightforward. The main loop looks something like this:

  // Map the line names in the input file to their SPIR-V variables
  let mut vars = HashMap::<&str, Word>::new();
  for line in insts {
      // Skip comments
      if line.starts_with('#') {
          continue;
      }
      let mut parts = line.split_whitespace();
      let name = parts.next().unwrap();
      let op = parts.next().unwrap();
      let var = match op {
          "const" => {
              let val: f32 = parts.next().unwrap().parse().unwrap();
              b.constant_bit32(ty_float, bytemuck::cast(val))
          }
          "add" => {
              let op0 = vars[&parts.next().unwrap()];
              let op1 = vars[&parts.next().unwrap()];
              b.f_add(ty_float, None, op0, op1).unwrap()
          }
          // ... and the rest of the ops
      };

      vars.insert(name, var);
  }

Does it go fast?

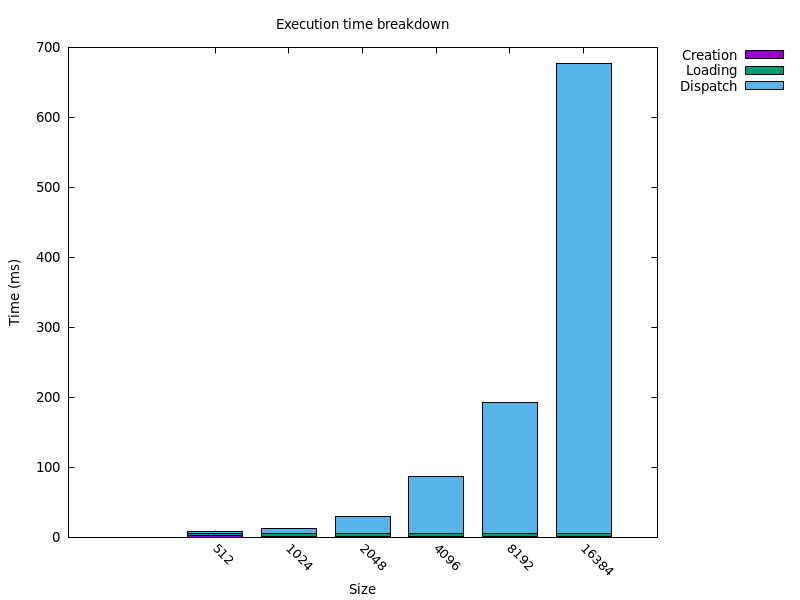

Sort of, yes! The binary as a whole isn't super quick, because initializing the GPU resources takes a little while. But after about 50ms of setup time, it took about 12ms to read the input data, create and assemble the binary SPIR-V code, load it on the GPU, and render out a 1024×1024 image. We can break down that 12ms further:

Here, "shader creation" includes the time to parse the input file and call b.begin_function and so on. "Shader loading" is just the call to vulkano::shader::ShaderModule::new, which I think is where shader compilation happens,³ and "dispatch" consists of running the shader and reading back the filled buffer. As a point of comparison, Ken Micklas's vectorized JIT implementation took 38ms on my machine. So 12ms seems pretty good, especially if we can further reduce the shader creation and loading time by targeting a lower-level representation.

Increasing the problem size scales a little better than I'd expect: doubling the sizes quadruples the number of pixels, but the runtime seems to consistently rise by less than a factor of four. I suspect this is caused by the GPU clocking up for the longer computations. I tried forcing my GPU to max power⁴, and it sped things up quite a lot -- 1024×1024 went from 6.8ms to 2.6ms -- but it also consistently crashed my machine at size 8192. So all these measurements are with the default power settings.

The main take-away here is that 1024×1024 is about the size where setup time and execution time are roughly comparable. Much larger than that, and the execution time dominates.

The source code of this implementation is here.

What next?

We've only explored brute-force computations so far, but apparently the really fast and scalable way to do this sort of thing is via interval arithmetic and expression simplification. I'd like to explore these techniques on the GPU, where we might face different tradeoffs with setup time and execution time: we'll have to compile a new shader for each simplified expression, so it probably makes sense to do bigger batches and less simplification.
